The telescope sign project is a "story work" project for the ELEVATE department from Rogers Media. I got the design requirement from them and completed the prototype in 14 weeks.

I designed the telescope sign based on the concept from my client and present the refined design to the client with marker render. I did the 3D CAD model, machinal design, and BOM after I got the proof of the design from the client.

The project was designed to be made with mainly sheet metal and wood, but we replace the sheet metal parts with acrylic because of the budget.

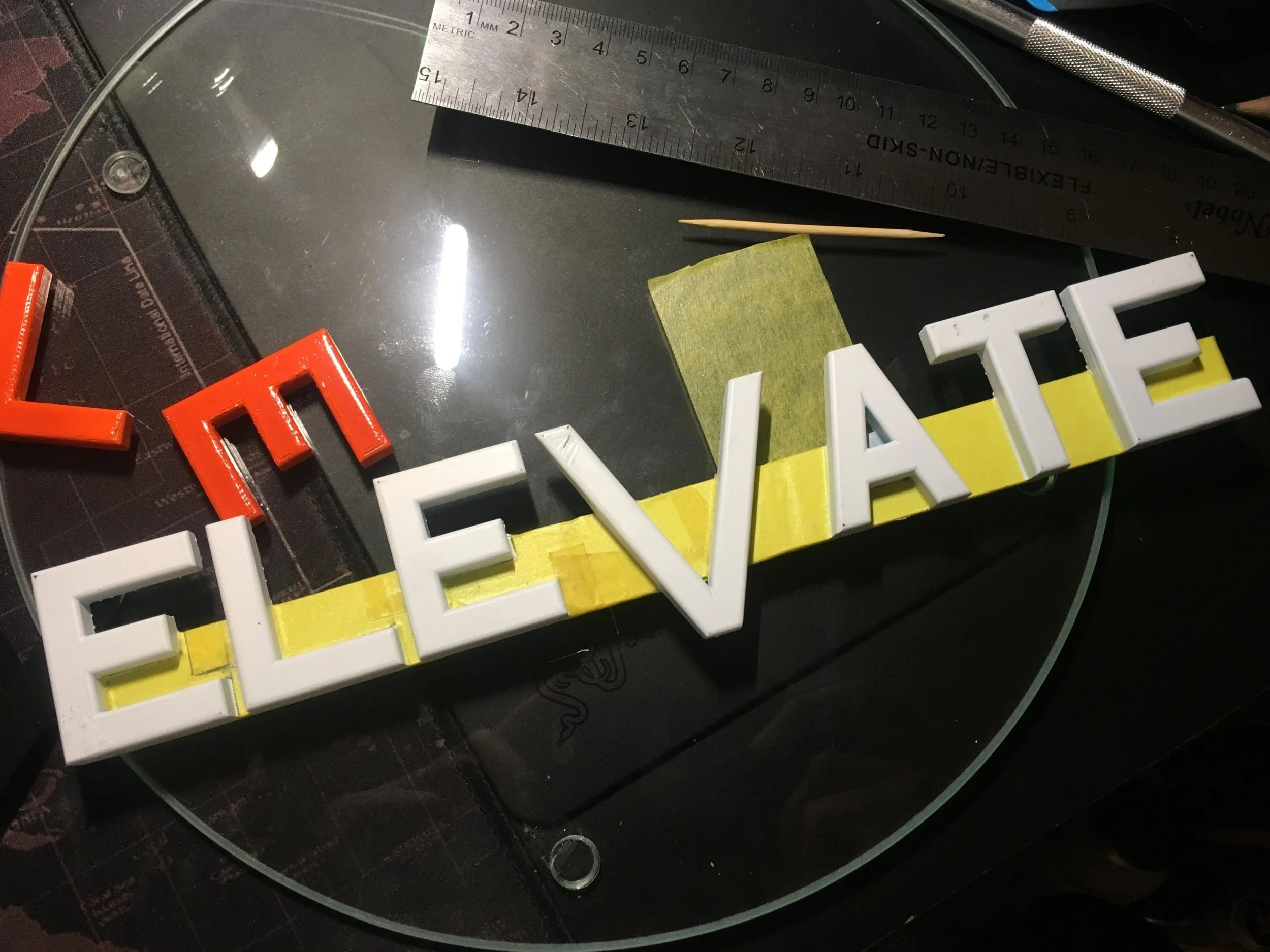

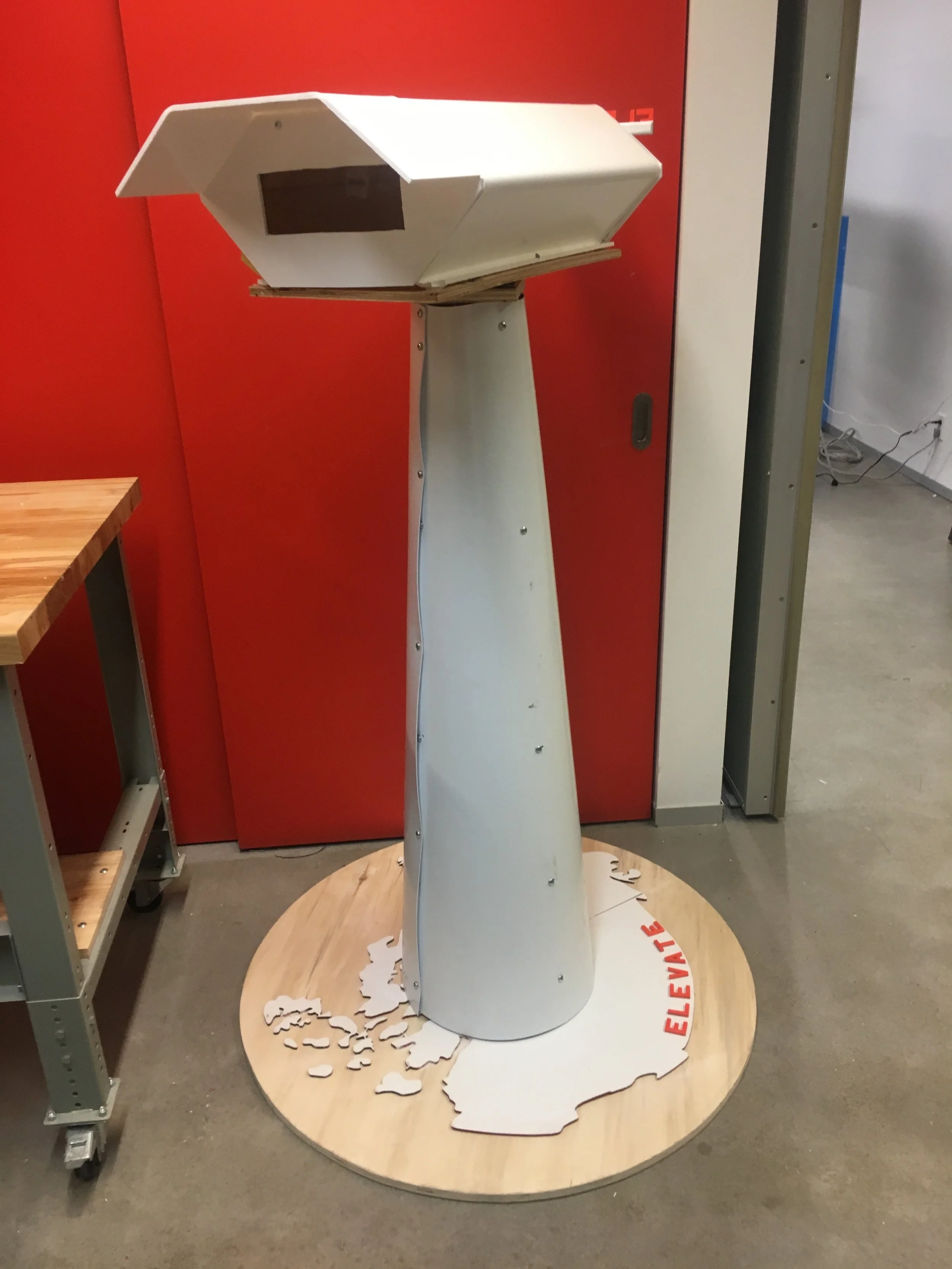

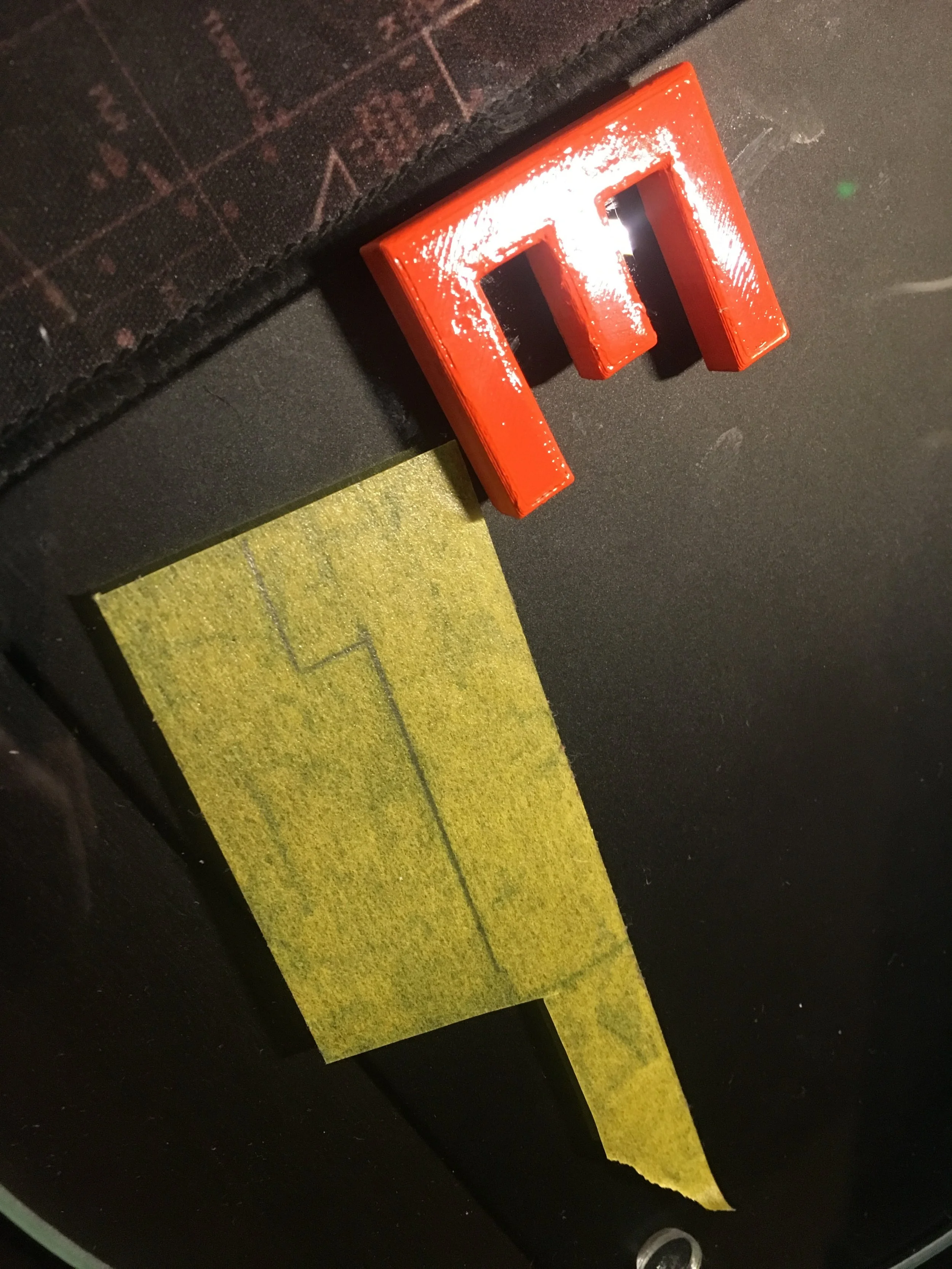

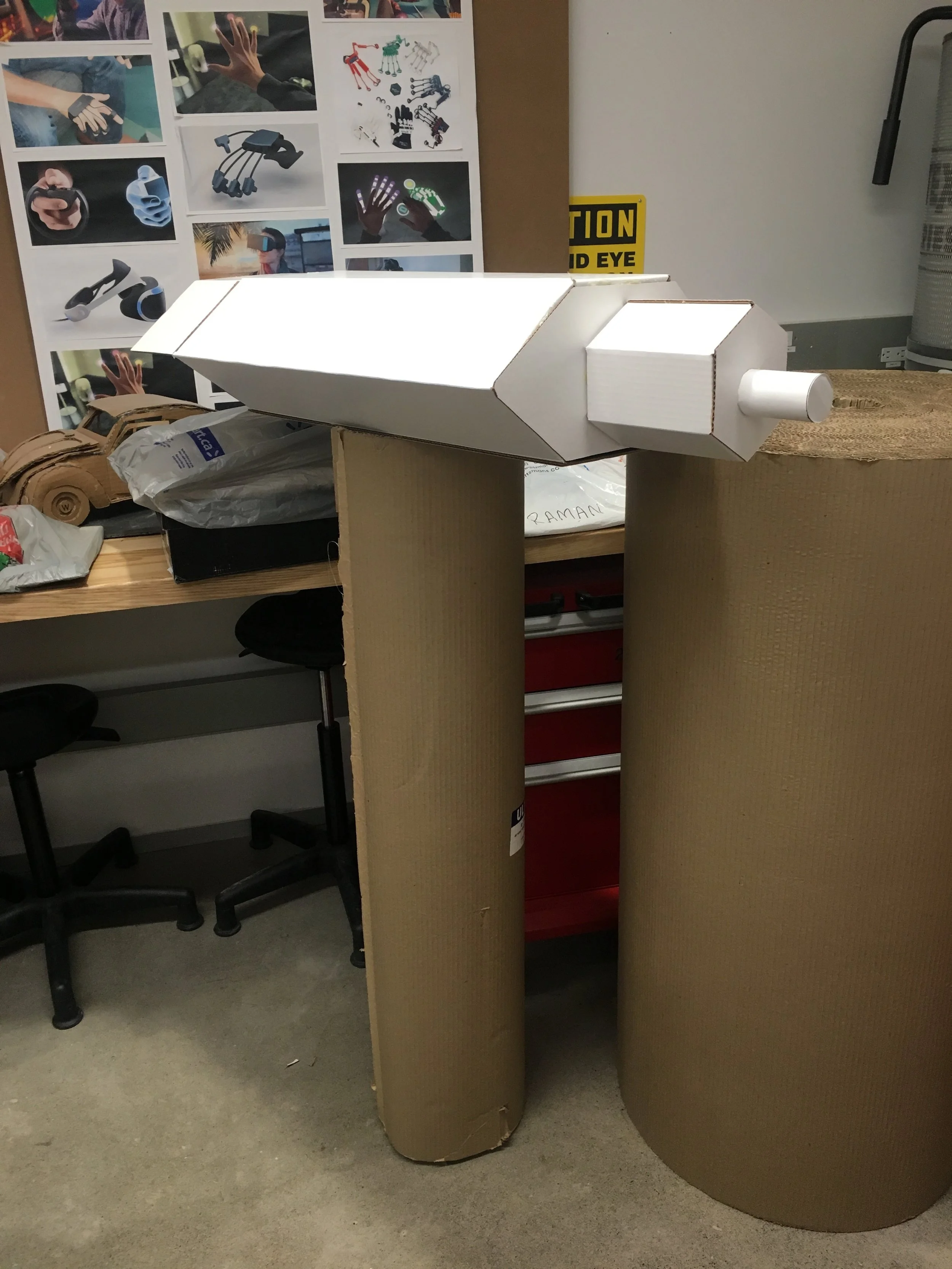

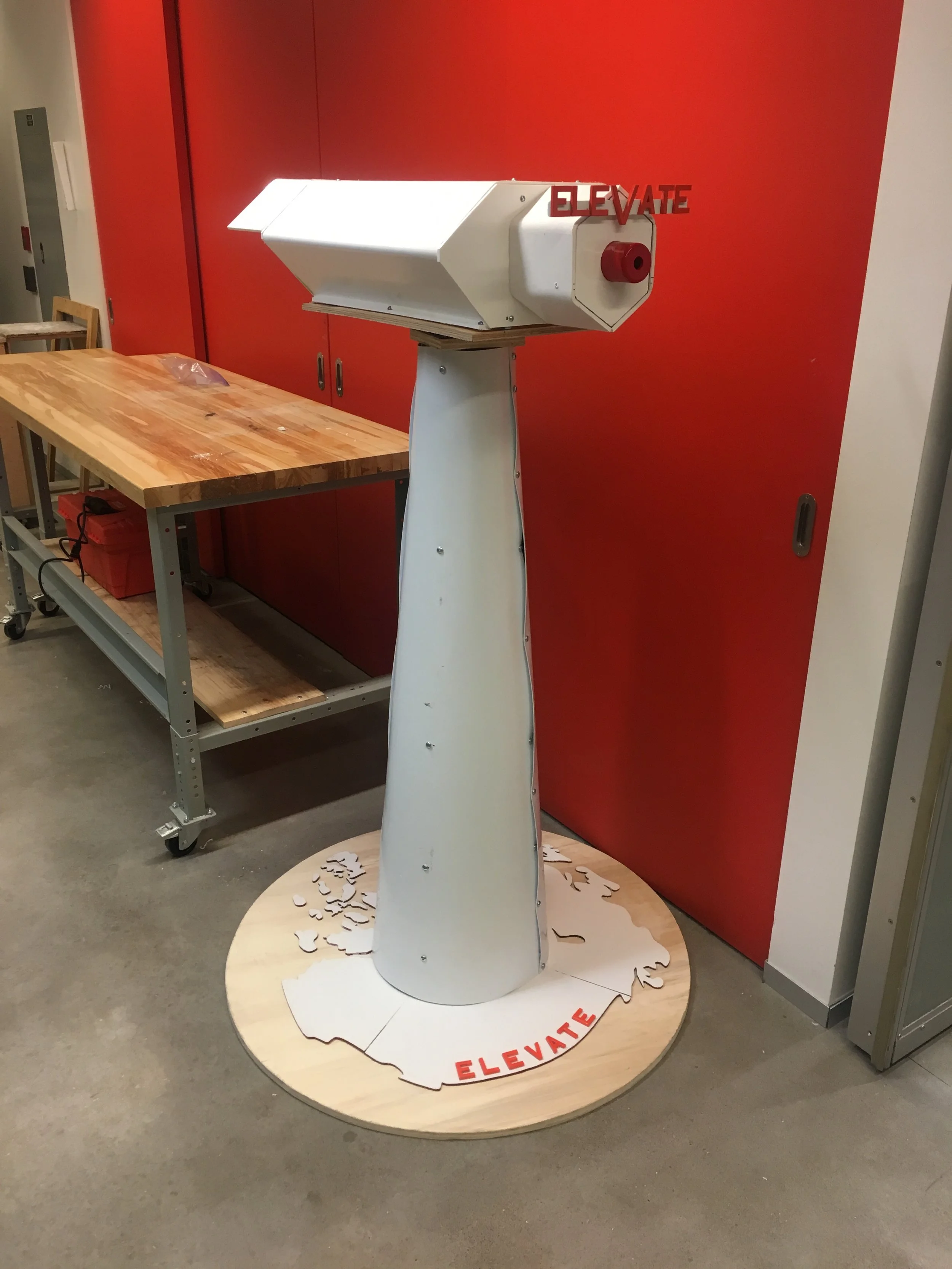

The project was delivered with two concept sketches, one set of technical drawing, one 3D CAD model package, one cardboard mock-up, and one functional prototype.
